Dilithium Design VCU
Regular price$450.00
/
Important:
Your satisfaction is our priority! If you discover a better price elsewhere, don't hesitate to let us know. We're committed to matching or even surpassing it. Our aim is to be your one stop shop for EV solutions, offering the best and most competitive prices.
Your satisfaction is our priority! If you discover a better price elsewhere, don't hesitate to let us know. We're committed to matching or even surpassing it. Our aim is to be your one stop shop for EV solutions, offering the best and most competitive prices.
In stock, ready to ship
・
6 available
The Thunderstruck Vehicle Control Unit (VCU) converts throttle, direction and brake inputs into CAN bus messages that drive an EV motor inverter/controller. It has been designed to work with the Gen1 (2011-12), Gen2 (2013-17) and Gen3 (2018+) Nissan Leaf, UQM-Danfoss PowerPhase® HD System, and Coda UQM inverters.
For UQM systems, inverter configuration is required. See the Installation and Operation Manual P/N 87510-011, and CANbus Interface Manual P/N 87510-009 from UQM-Danfoss Technologies. No inverter configuration is needed for Leaf inverters.
The serial cable is required for configuration and troubleshooting, and can be shared with other components purchased from ThunderStruck. Other cables may be used if matching the following FTDI specification: TTL-232R-5V-AJ

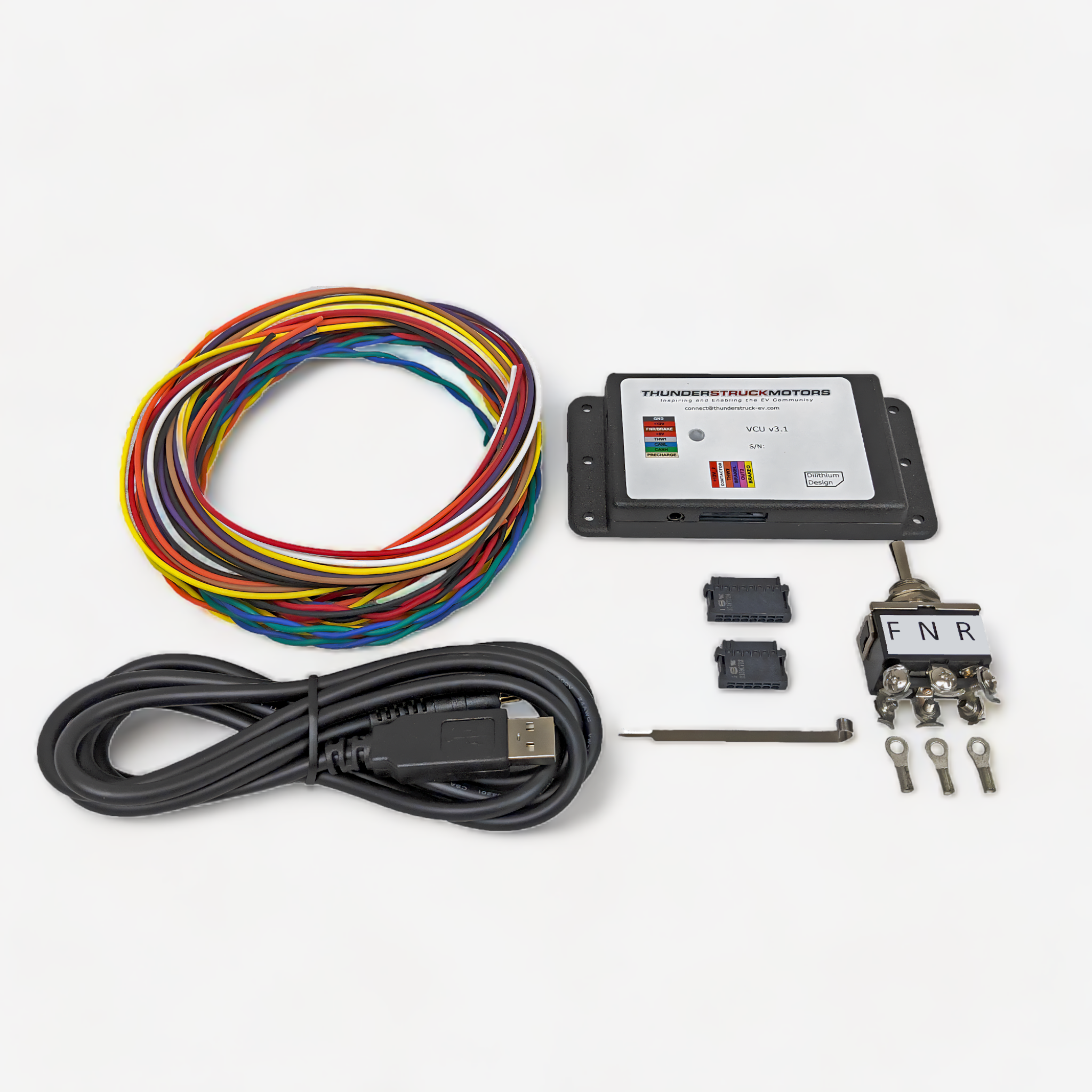

The Optional Accessory kit provides components and connections between VCU and throttle, precharge circuit, main contactor, and direction switch (see the Included Components tab). Component wires have connectors attached, and are labeled for easy assembly.
The Accessory Kit saves considerable time for you at very little more than the price of components. It saves us time on the phone later answering questions about how to wire it up. Please contact us for more information.
For UQM systems, inverter configuration is required. See the Installation and Operation Manual P/N 87510-011, and CANbus Interface Manual P/N 87510-009 from UQM-Danfoss Technologies. No inverter configuration is needed for Leaf inverters.
The serial cable is required for configuration and troubleshooting, and can be shared with other components purchased from ThunderStruck. Other cables may be used if matching the following FTDI specification: TTL-232R-5V-AJ
The Optional Accessory kit provides components and connections between VCU and throttle, precharge circuit, main contactor, and direction switch (see the Included Components tab). Component wires have connectors attached, and are labeled for easy assembly.
The Accessory Kit saves considerable time for you at very little more than the price of components. It saves us time on the phone later answering questions about how to wire it up. Please contact us for more information.
